For rear-wheel drive vehicles, especially those built for drag racing, understanding and setting the correct driveline angle is crucial. Improper driveline or pinion angle can lead to vibrations, excessive wear, and reduced performance. In this comprehensive guide, we'll explore what driveline angle is, why it matters, and how to set it up correctly for optimal drag racing performance.
What Is Driveline Angle?

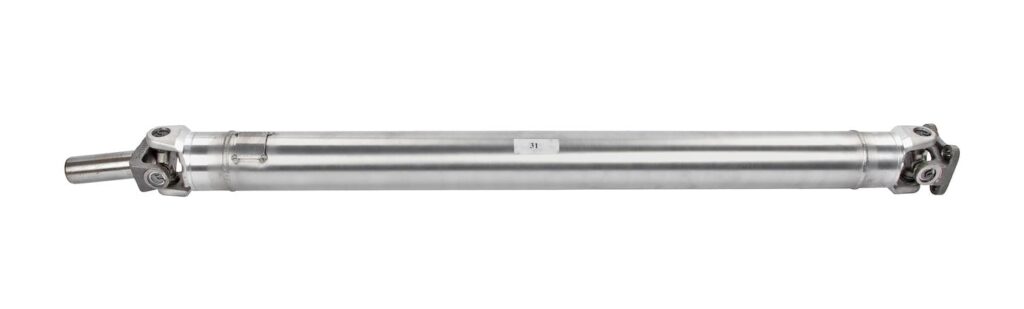

The driveline angle refers to the alignment of the driveshaft relative to the transmission output shaft and the differential pinion gear. In a rear-wheel drive vehicle, the driveshaft connects the transmission to the rear differential, transmitting power from the engine to the rear wheels.
Understanding Pinion Angle
The pinion angle is the angle between the driveshaft and the pinion gear of the differential. Correct pinion angle is critical for ensuring smooth power transfer and minimizing drivetrain vibrations. In drag racing, where maximum power and minimal drivetrain loss are essential, setting the correct pinion angle can significantly impact performance.
Why Driveline Angle Matters
- Vibration Reduction: Incorrect driveline angles can cause vibrations that not only affect driving comfort but also lead to premature wear of drivetrain components.
- Power Transfer Efficiency: Proper alignment ensures that the maximum amount of power is transferred from the engine to the wheels without losses due to misalignment.
- Component Longevity: Reducing stress on the driveshaft, universal joints, and other drivetrain components can extend their lifespan.
Setting Up the Correct Driveline/Pinion Angle for Drag Racing
To set up the correct driveline angle for drag racing, follow these steps:

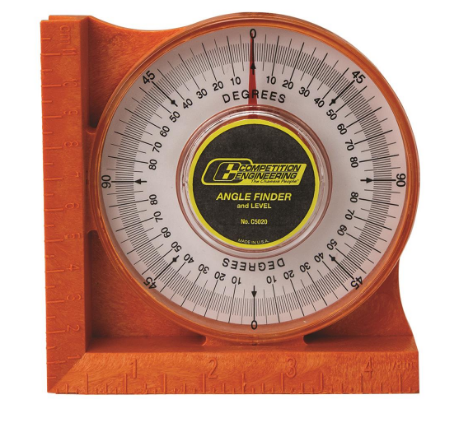

- Measure Current Angles: Use an angle finder to measure the angle of the transmission output shaft and the pinion gear. Record these angles for reference.
- Determine Desired Angles: For most drag racing applications, the pinion angle should be set to 1-3 degrees down from the driveshaft angle. This slight downward angle helps to compensate for the upward movement of the pinion under acceleration.
- Adjust Suspension: Adjust the rear suspension components to achieve the desired pinion angle. This may involve adjusting control arms, trailing arms, or leaf springs, depending on your vehicle's suspension setup.
- Recheck Angles: After making adjustments, remeasure the angles to ensure they are within the desired range.
- Test and Fine-Tune: Perform test runs and make any necessary fine-tuning adjustments to optimize performance and minimize vibrations.
Tips for Accurate Driveline Angle Setup
- Use Quality Tools: Accurate measurements require precise tools. Invest in a good quality angle finder.
- Consider Weight Transfer: Account for the weight transfer that occurs during acceleration. The pinion angle changes as the rear suspension compresses.
- Consult Experts: If you're unsure about making these adjustments yourself, consult with a professional or an experienced drag racer.
Setting the correct driveline and pinion angle is essential for maximizing the performance and longevity of rear-wheel drive vehicles, especially those used in drag racing. By ensuring proper alignment, you can reduce vibrations, improve power transfer efficiency, and protect your drivetrain components. At JEGS, we offer a range of high-quality tools and suspension components to help you achieve the perfect setup for your drag racing car. Visit our JEGS.com brand page for more information and to explore our products.
