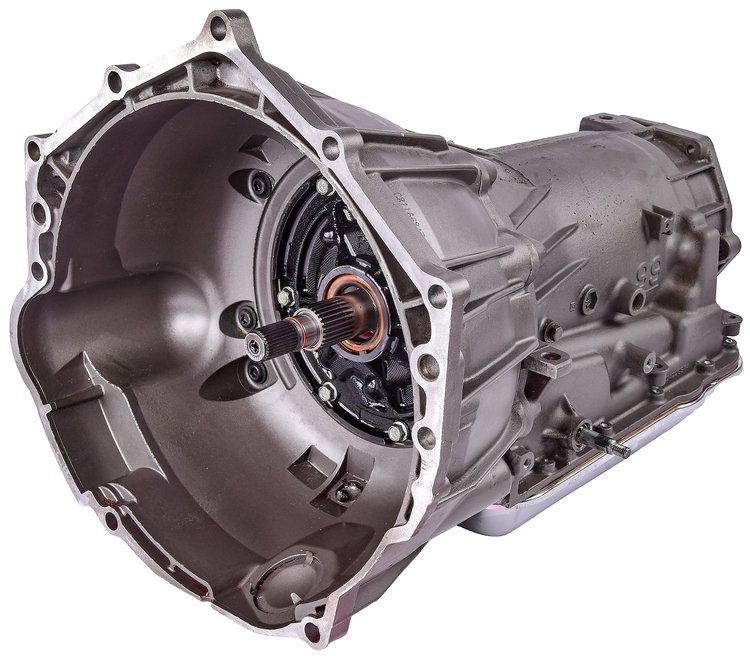

GM 4L65E Performance Automatic Transmission for 2007-2008 GM 4WD Trucks w/ LS-Series Engine
555-603024
Product Q&A
View Now
Items You Need
GM 4L65E
Transmission Fluid Fill Capacities
JEGS 555-603024 GM 4L65E Performance Automatic Transmission Features:
- Heavy-duty sun shell
- Heavy-duty 3-4 clutch pack
- New electronics
- External P.R.N.D.L. switch
- Input speed sensor
- Remanufactured pump with new rotor vane slide and stator support
- Corvette servo
- 0.500 Boost valve
- Cooler line fitting size: 1/4 in. -18
- Total transmission fluid capacity: 12.5 quarts
- Transmission fluid service capacity: 6 quarts
JEGS 555-603024 GM 4L65E Performance Transmission Features:
- Heavy-duty sun shell
- Heavy-duty 3-4 clutch pack
- New electronics
- External P.R.N.D.L. switch
- Input speed sensor
- Remanufactured pump with new rotor vane slide and stator support
- Corvette servo
- 0.500 Boost valve
- Cooler line fitting size: 1/4 in. -18
- Transmission Fluid Capacity: 6 quarts
JEGS 555-603024 GM 4L65E Performance Auitomatic Transmission Includes:
- Replacement drain plug seal
- Transfer case adapter to case O-ring
- Dipstick grommet
JEGS 555-603024 GM 4L65E Performance Transmission IMPORTANT Notes:
- This JEGS Performance Transmission has gone through rigorous testing to provide you with the best possible replacement transmission
- Here are a few tips to ensure a successful installation
- Follow the manufacturer's instructions thoroughly
- Before installation, flush any old fluid from your system, including transmission lines, oil cooler, and torque converter to remove any contaminants that could harm your new transmission
- When installing your torque converter, follow the instructions carefully to ensure proper fitment into the transmission input shaft and also attaching to your engine. Specific tolerances are required so that you do not damage the front pump in the transmission or the converter.
- This Unit only works in vehicles with a 15 Pin wiring harness connector
- The shifter bracket and transfer case adapter are not included
- JEGS 555-603024 4L65E transmission can also be used in an older vehicle when converting to an electronically-controlled overdrive transmission. The conversion to older vehicles will require the use of a transmission controller, crankshaft spacer, special cross-member, driveshaft changes, and other modifications (all sold separately).
- If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
Specifications:
Will this transmission work in a 1999 silverado 4.8 4x4 with out modification?
Is torque converter included?
Will This Transmission fit my 2007 Chevy Silverado 1500 4x4 Short bed 5.3 Vortec Automatic?
