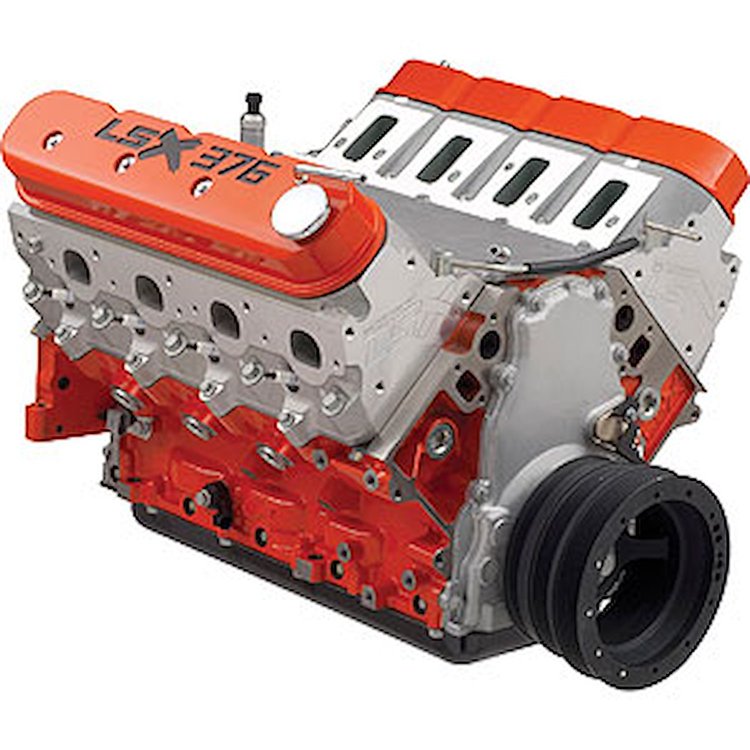

LSX376-B15 376ci Engine
Chevrolet Performance 19434412 Crate Engine:
- Engine Type: LSX-Series Gen-IV Small-Block V-8
- Displacement (cu. in.): 376 (6.2L)
- Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
- Block (P/N 19260095): LSX cast-iron with six-bolt, cross-bolted main caps
- Crankshaft (P/N 12603616): Forged steel
- Connecting Rods (P/N 12604857): Forged powdered metal
- Pistons (P/N 19259381): Forged aluminum
- Camshaft Type (P/N 12638426): Hydraulic roller
- Valve Lift (in.): 0.560 intake / 0.555 exhaust
- Camshaft Duration (@0.050 in.): 210° intake / 230° exhaust
- Cylinder Heads (P/N 19201805): LSX-LS3 rectangular port; with “as cast” 68-cc chambers/six-bolt attachment
- Valve Size (in.): 2.160 intake / 1.550 exhaust
- Compression ratio: 9.0:1
- Rocker Arms (P/N 12669995 int): Investment-cast, roll trunnion
- Rocker Arms (P/N 12681275 exh): Investment-cast, roll trunnion
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: Regular pump
- Maximum Recommended rpm: 6600
- Reluctor Wheel: 58X
- Balanced: Internal
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
