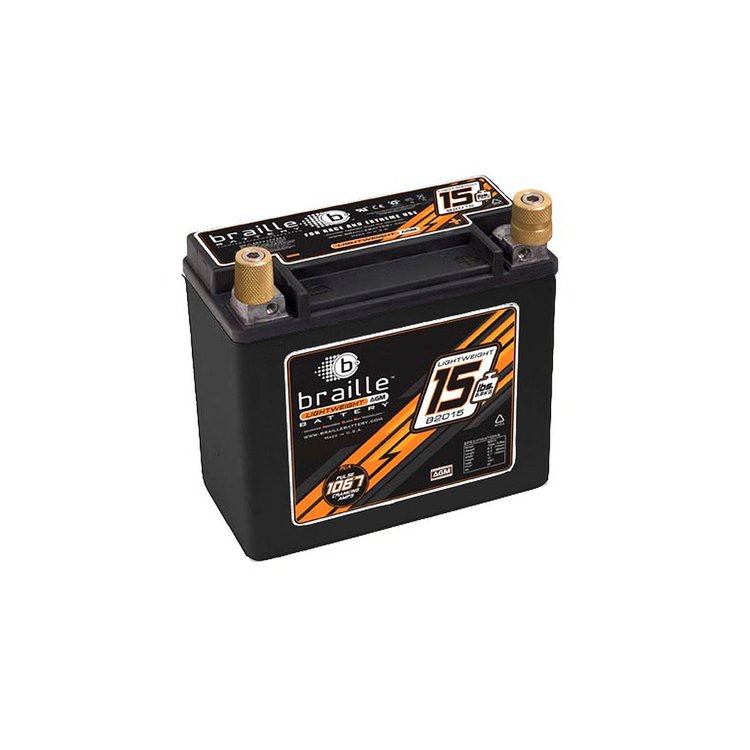

Braille Battery Advanced AGM Lightweight Racing Battery 15 lbs
147-B2015
![Advanced AGM Lightweight Racing Battery 15 lbs Advanced AGM Lightweight Racing Battery 15 lbs](http://www.jegs.com/images/photos/100/147/147-b2015.jpg)
Advanced AGM Lightweight Racing Battery
Cranking Amp Tests:
- PCA 5 seconds - 1067 Amps
- PCA 10 seconds - 933 Amps
- PCA 20 seconds - 824 Amps
- HCA 690 Amps
- CA 574 Amps
- CCA 425 Amps
- Amp Hour Rating: 21
- Battery Type: Sealed Rechargeable Deep-Cycle
- Mounting: Vertical or Horizontal
PERFORMANCE
Voltage: 12 volts
Full Charge Voltage: 13.8 volts
Short Circuit Current (Max Cranking Amps): 2500 est.
Pulse Cranking Amps (PCA) 5 sec @ 80F: 1067
Pulse Cranking Amps (PCA) 10 sec @ 80F: 933
Pulse Cranking Amps (PCA) 20 sec @ 80F: 824
Cranking Amps 30 sec @ 80F: 690
Cranking Amps 30 sec @ 32F: 574
Cold Cranking Amps 30 sec @ 0F: 425
Reserve Capacity: 35 minutes
Capacity (C/20 rate): 21 amp hr
Internal Resistance (ohms): 4.5 milliohms (.0045ohms)
Life Cycle @ 100% DOD: Up to 3100 cycles
PHYSICAL SPECS
Durable Virgin Poly Casing, Horizontal and Vertical Mounting
BCI Group: Usable for all Group Sizes
Length: 6.8"
Width: 3.4"
Height: 6.1"
Minimum Weight (lbs): 15 lbs
Post Type: SAE Automotive Posts included & 6 x 1.0mm racing bolts included.
Stainless Stud: Both Automotive SAE Posts and Race Style Bolts are Stainless with a 6 x 1.0mm bolt pitch
Recommended Uses:
Premium Luxury Vehicles
Extreme Audio Builds - Multiple Amps, Subs
Cold Climates - Daily Driven
Custom Cars and Vintage Vehicles - No Acid to Spill protect and enhance your vehicle!
Customers looking to save the most weight on a small displacement purpose built machine - check out the 147-B106 or 147-B14115 Batteries.
