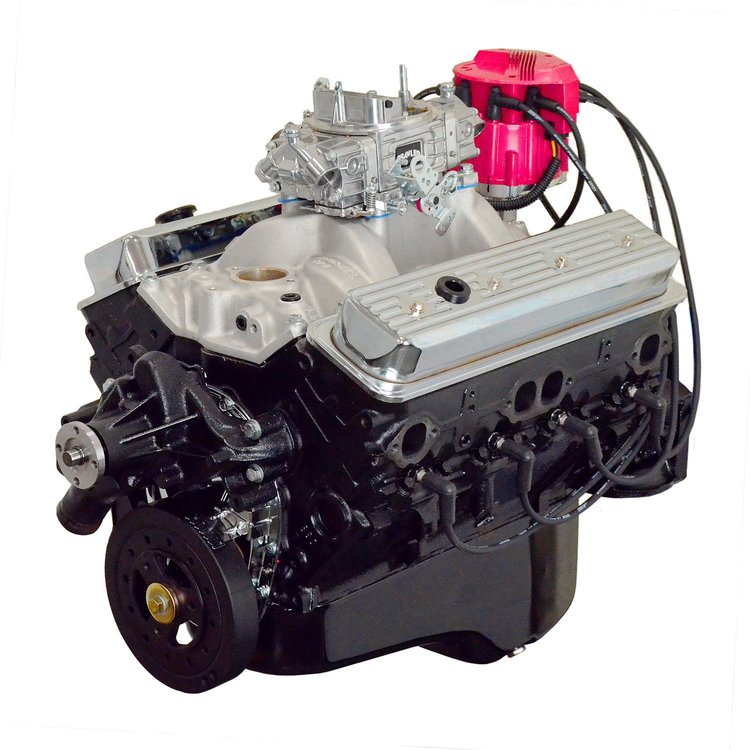

ATK Engines HP99C High Performance Crate Engine Small Block Chevy 350ci / 290HP / 375TQ
059-HP99C
Product Q&A
View Now
Items You Need
Complete Engine
ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.
Please CLICK HERE for ATK Core Return Process
NOTE:
- Core return can be any Small Block Chevy 350ci engine, except 1992-1997 LT1 style engines
Engine Specifications
Classic 350 engine with great street manners, and vacuum for all your power accessories.
- Horsepower: 290 hp
- Torque: 375 lb/ft
Block Information:
- Seasoned OE 2 bolt main 1pc seal 1996-2000
- Bore/Stroke: 4.060" x 3.480"
- Displacement: 350ci
Rotating Assembly:
- Crankshaft: OE Reground 1 piece seal crank
- Balance: External rear, internal front
- Rods: OE powder metal 5.7"
- Compression Ratio: 9.4:1
- Pistons: Hypereutectic
- Rings: Moly
Camshaft Specs:
- Camshaft: Hydraulic roller
- Cam Duration @ .050": Intake 191 / Exhaust 194
- Cam Lift: Intake .414" / Exhaust .428"
- Lobe Separation Angle: 111lsa
- Timing Chain: Single roller
Cylinder Head Information:
- Cylinder Heads: Vortec cast iron
- Combustion Chamber: 64cc
- Intake Runner: 165cc
- Valve Size: 1.94" Intake / 1.50" Exhaust
- Rocker Arms: Stamped steel 1.5
Oil Pan Information:
- Oil Pan: Rear sump 5qt (not for Chevelles with steering behind crossmember, some Corvettes, and 1962-1967 Chevy II's)
- Oil Pump: Melling standard volume
Engine Info
- Carburetor: Quick Fuel 670cfm vacuum secondary electric choke #793-BR-67256
- Balancer: 8" internal balance
- Distributor: HEI (iron gear)
- Flexplate: External balance 168 tooth 1987-Up
- Intake Manifold: ATK HP dual plane
- Firing Order: 18436572
- Octane: 91+
- Spark Plugs: Autolite #417-605
- Spark Plug Wires: 8mm
- Water Pump: OE long pump
Disclaimer: The parts listed are ATK's recommendations of parts to be used to obtain the power figures listed. Power figures can vary based on parts used by the end user. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Engine Break-In Procedure
Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat process 2-3 more times. Do not idle the engine for any extended period at this time, this is critical to break in the camshaft.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable). Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.
Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Use of oil with zinc or a zinc additive for the life of your engine is recommended.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Specifications:
I have a 1964 C10 with a Muncie 4 spd Will the flywheel and bell housing match up? It a 1979 Chevy 305 in it now.
Will this bolt into my 57 Belair with a TH350?
Can it fit my 1990 chevy g20 4.3liter v6
Is camshaft flat tappet?
On website summit racing they say this engine needs an electric fuel pump. What kind of pump do I need? I can’t find any info on that.
Will this set up fit my 1963 impala?
Will this fit 1992 Camaro? Will it bolt up to 700R4 transmission?
Will this fit my 1987 Firebird trans am? And if so is it a bolt in with no further modifications and can I use the alternator and all of those things on this engine from my 305 tpi small block
