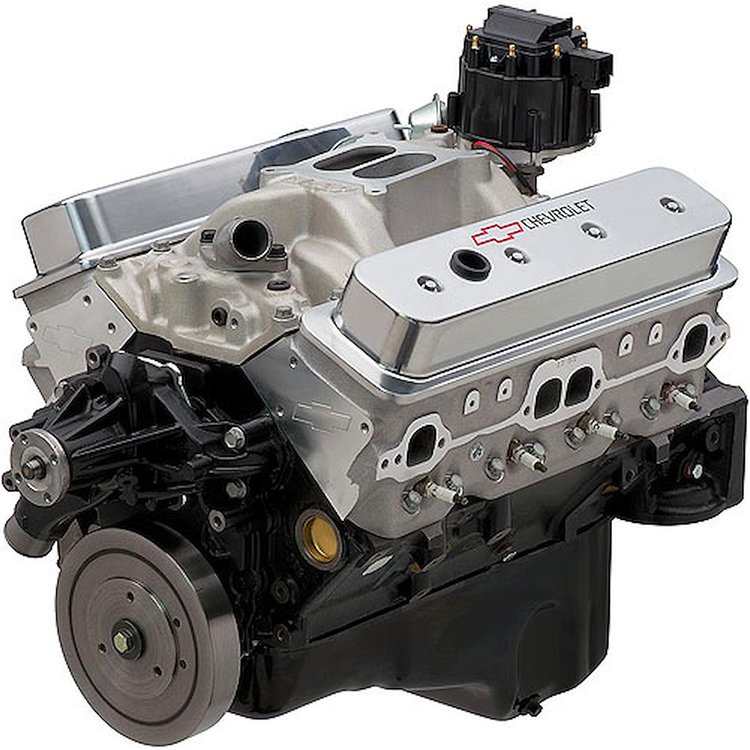

Chevrolet Performance SP350/385 Base 350ci Engine
809-19433039
Product Q&A
View Now
Items You Need
SP350/385 Base 350ci Engine
INSTALLATION NOTES:
- Use the Holley 770-Cfm four-barrel carburetor p/n 809-19170093 to achieve the listed horsepower and torque
- Requires four-barrel carburetor, spark plug wires, and additional components to complete assembly
- Comes with a 12.750'' externally balanced 153-tooth automatic transmission flexplate. Change to externally balanced flywheel for manual transmission applications.
- Designed for pre-1976 street vehicles or any off-road vehicle.
- Some assembly and minor engine tuning required
- Not intended for marine application
Engine Break-In Procedure
Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM, with no load on the engine for the first 30 minutes. This is critical to breaking in the camshaft.
Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM. Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then let off in gear and coast back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then let off in gear and coast back down to 20 MPH.
Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check the coolant level, top off if necessary. Drive the next 500 miles normally, without high RPMs (below 5000 RPM), hard use, or extended periods of high loading. Change the oil and oil filter again using conventional (non-synthetic) oil. Keep an eye on oil levels during the first thousand or so miles.
It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.
19433039 supersedes 19417624, 19432101
Specifications:
Will this fit in a 1970 impala with the TH350 3speed automatic transmission?
Is this a 4 bolt main block.
